Corsair TX vs Corsair HX
Old
  (#1)
vitortheone
Member Guru

Videocard: HIS 7970 3GB IceQ x2 CFX
Processor: i7 4790
Mainboard: Asus Sabertooth Z97 mk2
Memory: 8GB Gskill DDR3 1600 CL9
Soundcard:
PSU: Corsair HX 750W 80+ Gold
Default Corsair TX vs Corsair HX - 07-29-2013, 12:12 | posts: 63

So guy's i'm in the need of a new psu to replace my 7 years old thermaltake toughpower 750w. I'm torn between Corsair TX v2 750w or the Corsair HX 750w. Diference between them is 35$. What do you guy's think? Thx's in advance

Reply With Quote

Old
  (#2)
ShrekAlmighty
Newbie

Videocard: MSI GTX770 Gaming 2GB
Processor: Intel Core i7 930 @ 4GHz
Mainboard: Asus P6X58D-E
Memory: GSkill DDR3 2000GHz 6GB
Soundcard:
PSU: Corsair HX750
Default 07-29-2013, 12:25 | posts: 1 | Location: South Africa

Well out of the 2 PSU's

HX - Gold Certified, 7 Year Warranty
TX - Bronze Certified, 5 Year Warranty

Out of that id say go for the HX. It also has more SATA connector's.

So id recommend the HX

Reply With Quote
Old
  (#3)
Decane
Ancient Guru

Decane's Avatar

Videocard: ATI Radeon HD4870 512MB
Processor: Intel C2Q Q6600 @ 3GHz
Mainboard: Gigabyte GA-EP45-DS3R F10
Memory: Corsair XMS2 4GB DDR2
Soundcard: ALC889A | DT880 600***937
PSU: Corsair TX650W
Default 07-29-2013, 12:34 | posts: 5,044 | Location: England (/Finland)

The decision basically comes down to this: are 2 years extra warranty, slightly cleaner power and modularity worth $35 to you? If so, the HX should be your choice, since those are its primary advantages over the TX.

(I would go for the HX.)

Reply With Quote
Old
  (#4)
eclap
Ancient Guru

eclap's Avatar

Videocard: HD7950 CFX + Qnix QX2710
Processor: i5 2500k @4.5 1.2v
Mainboard: Asus P8Z77-V Pro
Memory: 8GB G-Skill RipjawsX 1600
Soundcard: SB Z/Aune T1/AD700/DT880
PSU: XFX Black 750W 80+ Gold
Default 07-29-2013, 12:48 | posts: 25,826 | Location: Hampshire UK

I'd go with the HX. When I recently bought my psu, I could have bought the XFX 750W bronze or silver. the price difference was about £20 and I went with 80+ silver. Problem is they then didn't have the silver in stock so it was either bronze or gold. the 80+ gold XFX was some £35 more than the bronze, I went with the 80+ gold. Another option was the 750W Corsair HX, but my previous psu was a Corsair (TX 650) and I wanted something different. the XFX was a couple of quid more than the HX, but still, I went for the PSU in my spec below.

What I'm saying is that I would definitely go for the 80+ gold HX out of those 2 PSUs, the price difference isn't much, the HX is better value for money.

Oh btw, the HX is a CWT OEM, there's also quite a few Seasonic OEM 750W 80+ gold units on the market.

Last edited by eclap; 07-29-2013 at 12:55.

Reply With Quote

Old
  (#5)
clawhamer
Maha Guru

clawhamer's Avatar

Videocard: EVGA 780 Classified
Processor: i7 4770K 4.4GHz / H100i
Mainboard: ASUS M6H Z87
Memory: Corsair Pt. 8GB 1866MHz
Soundcard: SupremeFX
PSU: Corsair AX850
Default 07-29-2013, 15:39 | posts: 2,169 | Location: canada

I'm also suggesting the HX, as eclap pointed out, better value for the money. And the difference in cost is next to nothing over the life of the unit.

The TX is also an excellent PSU, have one powering another overclocked rig for over four years without any issues.

Reply With Quote
Old
  (#6)
vitortheone
Member Guru

Videocard: HIS 7970 3GB IceQ x2 CFX
Processor: i7 4790
Mainboard: Asus Sabertooth Z97 mk2
Memory: 8GB Gskill DDR3 1600 CL9
Soundcard:
PSU: Corsair HX 750W 80+ Gold
Default 07-31-2013, 12:33 | posts: 63

Thx's guy's the HX it is. So what's the 80 plus gold stands for? The efficiency?
Another thing guy's i stumbled on a post in another fórum of a guy saying that modular psu's loose efficiency and give more trouble than hard wired psu's. Is there any truth in that?

Reply With Quote
Old
  (#7)
eclap
Ancient Guru

eclap's Avatar

Videocard: HD7950 CFX + Qnix QX2710
Processor: i5 2500k @4.5 1.2v
Mainboard: Asus P8Z77-V Pro
Memory: 8GB G-Skill RipjawsX 1600
Soundcard: SB Z/Aune T1/AD700/DT880
PSU: XFX Black 750W 80+ Gold
Default 07-31-2013, 12:50 | posts: 25,826 | Location: Hampshire UK

Quote:
Originally Posted by vitortheone View Post
Thx's guy's the HX it is. So what's the 80 plus gold stands for? The efficiency?

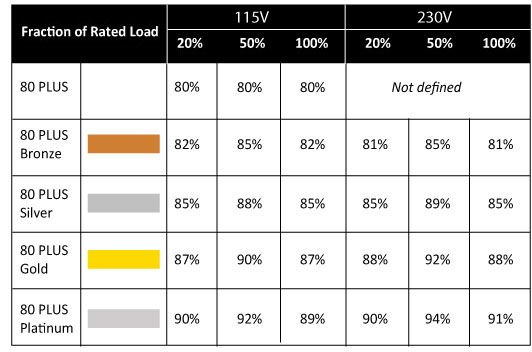

Yes, the 80+ gold is more efficient than the 80+ bronze, see below.



So as you see, the 80+ gold will be more efficient across the board. In general meaning higher quality components will be used here and there.

Quote:
Originally Posted by vitortheone View Post
Another thing guy's i stumbled on a post in another fórum of a guy saying that modular psu's loose efficiency and give more trouble than hard wired psu's. Is there any truth in that?
I remember reading about this exact thing in the past, but nowadays a lot of high end and expensive PSUs are modular, they wouldn't be modular if that was the case, I'm pretty sure.

Reply With Quote
Old
  (#8)
vitortheone
Member Guru

Videocard: HIS 7970 3GB IceQ x2 CFX
Processor: i7 4790
Mainboard: Asus Sabertooth Z97 mk2
Memory: 8GB Gskill DDR3 1600 CL9
Soundcard:
PSU: Corsair HX 750W 80+ Gold
Default 07-31-2013, 13:09 | posts: 63

Thx's everyone for the help. Just gotta hope my psu doesn't do anything "drastic" til i buy the new one lol

Reply With Quote
Old
  (#9)
eclap
Ancient Guru

eclap's Avatar

Videocard: HD7950 CFX + Qnix QX2710
Processor: i5 2500k @4.5 1.2v
Mainboard: Asus P8Z77-V Pro
Memory: 8GB G-Skill RipjawsX 1600
Soundcard: SB Z/Aune T1/AD700/DT880
PSU: XFX Black 750W 80+ Gold
Default 07-31-2013, 13:10 | posts: 25,826 | Location: Hampshire UK

Quote:
Originally Posted by vitortheone View Post
Thx's everyone for the help. Just gotta hope my psu doesn't do anything "drastic" til i buy the new one lol
Go buy it now! Hope everything works out ok, let us know if it fixes your problems.

Reply With Quote
Old
  (#10)
vitortheone
Member Guru

Videocard: HIS 7970 3GB IceQ x2 CFX
Processor: i7 4790
Mainboard: Asus Sabertooth Z97 mk2
Memory: 8GB Gskill DDR3 1600 CL9
Soundcard:
PSU: Corsair HX 750W 80+ Gold
Default 07-31-2013, 20:03 | posts: 63

just ordered the psu. they were out of stock and should arrive only next week

Reply With Quote

Old
  (#11)
vitortheone
Member Guru

Videocard: HIS 7970 3GB IceQ x2 CFX
Processor: i7 4790
Mainboard: Asus Sabertooth Z97 mk2
Memory: 8GB Gskill DDR3 1600 CL9
Soundcard:
PSU: Corsair HX 750W 80+ Gold
Default 08-10-2013, 20:44 | posts: 63

Got the PSU installed, everything is fine now! Thx's for the help!

Reply With Quote
