(Scratch build) The Auto Rickshaw (Bajaj/Tuk-Tuk PC)
Old
  (#1)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default (Scratch build) The Auto Rickshaw (Bajaj/Tuk-Tuk PC) - 02-01-2013, 06:31 | posts: 40

Hi Everyone
I would like to share my scratch build, which I’ve been doing since late December 2012...It finish now.
The Idea is to build the vehicle that known as Bajaj (in Indonesia) or Tuk-Tuk (in Thailand).








I got the original design from paper craft at paper-replika.com. They give me permission to use and modified their paper craft design…
so I made a little change with Corel X5.


This design I will use for motherboard cover..


The material I will use is:
1. Paper
2. Acrylic
3. Fiberglass
4. Steel...and..
5. Leather (black Leather)

The hardware:
1. M-ATX Motherboard = ECS H61H2-M12
and the rest soon... after Pay day..

First I make a mold from 180mm Cartoon Paper < don't know if this the right name,
re-size 150% bigger from the original design.




To get the right measurement and the right feeling
I glue it and make it just the same like a making of paper craft model it self..





Then Painted to choose the right color.
Will be use this color with black flat later.

Last edited by WAROQ; 04-30-2013 at 20:49.

Reply With Quote

Old
  (#2)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-01-2013, 06:33 | posts: 40

Now the real work.
I start use the model as mold for Fiberglass..
Little messy and little itchy from fiber mat




For front wheel








I will use this for bending the acrylic


Dremel work with Acrylic








Bending acrylic with fiberglass as a mold, I use Heat gun to bend it




The face of Bajaj PC




Last edited by WAROQ; 02-01-2013 at 07:54.

Reply With Quote
Old
  (#3)
3dPlayer
Banned

Videocard: Have
Processor: a
Mainboard: good
Memory: day
Soundcard: or
PSU: not
Default 02-01-2013, 08:32 | posts: 1,822


Reply With Quote
Old
  (#4)
BLEH!
Ancient Guru

BLEH!'s Avatar

Videocard: 7970 CF @ Stock
Processor: 980X @ 4 GHz
Mainboard: ASUS P6T7 WS-SC
Memory: 12 GB Corsair @ 1866 MHz
Soundcard: Saffire Pro40/KRK Rokit 5
PSU: Enermax Revo 1500W
Default 02-01-2013, 11:37 | posts: 4,900 | Location: London

Quote:
Originally Posted by dr.noob View Post
This.

Reply With Quote

Old
  (#5)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-01-2013, 19:03 | posts: 40

Quote:
Originally Posted by dr.noob View Post


Quote:
Originally Posted by BLEH! View Post
This.
Really BLEHtiful to see you here

Reply With Quote
Old
  (#6)
viren
Maha Guru

viren's Avatar

Videocard: GTX 570
Processor: I7 870
Mainboard: P55
Memory: 4GB
Soundcard: 7.1 PCI-E
PSU: 800W
Default 02-01-2013, 20:00 | posts: 2,357 | Location: Pune, India

Thats a nice rickshaw, haven't seen one anywhere.

Looks nice, good luck and keep us posted.

Reply With Quote
Old
  (#7)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-03-2013, 17:05 | posts: 40

Quote:
Originally Posted by viren View Post
Thats a nice rickshaw, haven't seen one anywhere.

Looks nice, good luck and keep us posted.
Thanks viren, the origin of Bajaj from your country isn't it? Really unique shape and great engine, it's still running on our street...for decades


Update pict for PSU and Motherboard Tray.






I encounter problems in connecting between the PSU tray and the front, the acrylic its not strong enough to hold, even with some screw.
So I use "Puzzle Technique" got this idea when I see my daughter puzzle.





then fill the gap with super glue, leave it all night before masking and sanding it.

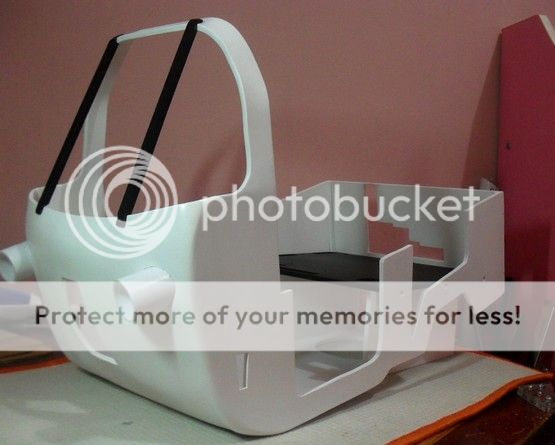

The Motherboard will be on top of Power supply




It fit..properly










Will be soon for cover, and Paint..it
Thanks..

Reply With Quote
Old
  (#8)
PhazeDelta1
Ancient Guru

PhazeDelta1's Avatar

Videocard: EVGA 780Ti Classified SLI
Processor: Intel i7 4770k
Mainboard: Asus Sabertooth Z87
Memory: 16GB Corsair 2133MHz
Soundcard: Creative SB Z
PSU: EVGA SuperNOVA 1200 P2
Default 02-03-2013, 17:36 | posts: 13,550 | Location: USA

You sir have too much time on your hands.

Awesome job so far.

Reply With Quote
Old
  (#9)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-03-2013, 17:48 | posts: 40

Quote:
Originally Posted by PhazeDelta1 View Post
You sir have too much time on your hands.

Awesome job so far.
Ha..ha..Only hands that I got..sir
Thanks.. for stop by

Reply With Quote
Old
  (#10)
Uncle Dude
Maha Guru

Uncle Dude's Avatar

Videocard: EVGA GTX680 SLI
Processor: 2600k/H100i @ 4.8
Mainboard: ASUS P8Z68 Deluxe
Memory: Vengeance 16GB@1866
Soundcard: Avid Eleven Rack
PSU: Corsair AX860i
Default 02-03-2013, 17:59 | posts: 2,241 | Location: USA

Mad skills. Looking forward to the finished product.


Reply With Quote

Old
  (#11)
styka
Master Guru

styka's Avatar

Videocard: HIS R9 280X IceQ X2
Processor: i5 2500k
Mainboard: Asrock P67 Pro3
Memory: 8GB
Soundcard: Creative X-Fi Titanium
PSU: Seasonic X650W
Default 02-03-2013, 19:13 | posts: 303 | Location: Jakarta, Indonesia

Wow.. You really do have time and money to spent..

A bajaj casing..
Now thats new...

Reply With Quote
Old
  (#12)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-04-2013, 18:51 | posts: 40

Quote:
Originally Posted by Uncle Dude View Post
Mad skills. Looking forward to the finished product.

Thanks uncle dude

Quote:
Originally Posted by styka View Post
Wow.. You really do have time and money to spent..

A bajaj casing..
Now thats new...
Nice to see somebody from my hometown
Actually I don't have much time doing my mod,
mostly I'm doing it after office hour..when I get back home or on the week end.
I've been working on this project since December 2012..hope will finish soon.

Were where you at Jakarta Styka?

Reply With Quote
Old
  (#13)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-05-2013, 18:10 | posts: 40

Sanding and Painting



Basic Color..first layer


Finishing PSU fan hole


Painting again with basic color


Front lamp from 1 Inch PVC pipe




I also make some pole between windshield and front face. And paint motherboard tray.


so far..

Reply With Quote
Old
  (#14)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-09-2013, 20:26 | posts: 40

Cover for Motherboard


Even though I make a design with X5 before, but still I make a model to get the feeling and the right measurement..
one of my friend said this some old fashion in me..LOL..












Result



Reply With Quote
Old
  (#15)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-09-2013, 21:05 | posts: 40

I find some interesting stuff at local motorcycle Accessories shop




I might used this for head lamp..the seller say it has 7 color that will change periodically


Cut a little bit..




Paint it, i use heat gun to dry it..cause its rain in my place when i do this.


looks cute





Reply With Quote
Old
  (#16)
sinnedone1
Newbie

Videocard: XFX HD 6870 Crossfire
Processor: Intel 2500k
Mainboard: Asus P8P67 Pro Rev 3.1
Memory: Corsair Vengeance 4x4gb
Soundcard:
PSU: Corsair TX850w
Default 02-13-2013, 02:12 | posts: 21

Very interesting, cant wait to see it finished.

Reply With Quote
Old
  (#17)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-15-2013, 09:43 | posts: 40

Quote:
Originally Posted by sinnedone1 View Post
Very interesting, cant wait to see it finished.
thank you sinnedone.

Another progress…
Making front grill, I use 4mm acrylic.


There is a little curved at the top...hmmm..
since I did not make a mold to bend it, so..I use my working chair armrest for the mold.


Another play with heat gun, and it meld down then bend..It’s work


A little bit of putty and sandpaper



Spray it with Black fat
some surface still not refined yet..I put some putty and spray it again.


Done..


I also paint the body, use LIGHT SCARLET for the color,
Close enough with a color of model that I make before.


Front fender, first layer paint


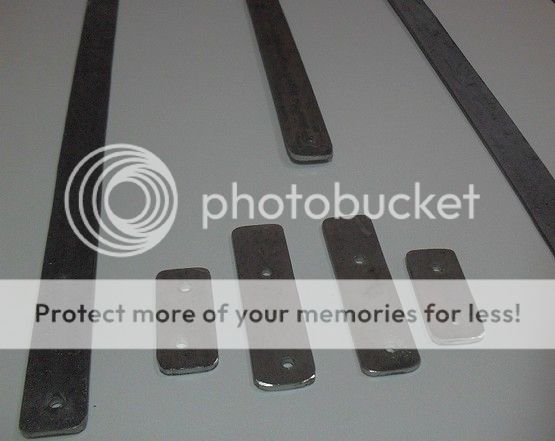

And while waiting for paint to dry…I cut some steel, this will be pole for the soft top .
Firework.....


To bad my Dremel not strong enough drill to make a hole on the steel

Got to find a bigger drill.


Lucky me, there is a Hammersmith (I hope this a right word) near my house.
He very enthusiast when I tell him that I make a bajaj for pc,I show him a picture form my phone LOL..
So he do the drill itself also did a little finishing at the steel..
I really appreciate for what his done.. he make me promise that I will show him a bajaj pc after its done..LOL
This picture taken from his workshop look at the fire..


Result

Reply With Quote
Old
  (#18)
AC_Avatar100400
Master Guru

AC_Avatar100400's Avatar

Videocard: EVGA GTX 780 ACX 1440p
Processor: I7 2700k 4.5 Ghz 1.32v
Mainboard: MSI Z77 MPower
Memory: 16GB G.Skill Ripjaws 2133
Soundcard: I Burnt it in a Fire Lol
PSU: EVGA SuperNova G2 750w
Default 02-15-2013, 10:13 | posts: 306 | Location: Australia

Very nice man wish i could do mods like that i would make a space ship .
I have 1 question do you think its going to run for a very long time from what i know those Bajaj do?.

Reply With Quote
Old
  (#19)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-15-2013, 10:23 | posts: 40

For a few days ago, I found some Interesting stuff that will be particularly useful in the Auto rickshaw.

This wheel find it at a local hardware store, it use to be for trolley.

but it is look fit

accidentally when I drove my 5 year old daughter to the toy store, I saw this..


Buy it …I will manage it at the front fender shock absorber


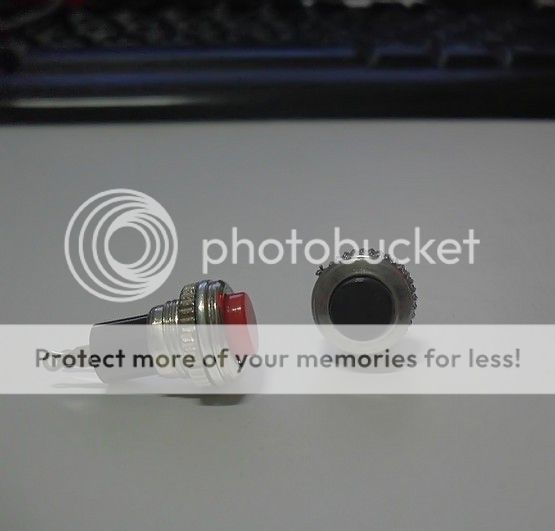

I find this cute little button too... at electrical supply store near of my office building.

I will use the button for On/Off and reset button.

Reply With Quote
Old
  (#20)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-15-2013, 10:28 | posts: 40

Quote:
Originally Posted by AC_Avatar100400 View Post
Very nice man wish i could do mods like that i would make a space ship .
I have 1 question do you think its going to run for a very long time from what i know those Bajaj do?.
Space ship..?? it will be interesting.. man
just do it..then you will know that you could..

Reply With Quote
Old
  (#21)
Ice Cube
Banned

Videocard: Gigabyte GTX 670
Processor: 2700K@4.5GHz/ Corsair H70
Mainboard: Asus P8Z77-V
Memory: Gskill RipJaws 8GB-1600
Soundcard: Onboard
PSU: Seasonic 850W(80+Gold)
Default 02-15-2013, 14:52 | posts: 191 | Location: Refrigerator

LOL man you made me nostalgic.. I still remember when i was a kid, one day one of these ran over my leg..

Reply With Quote
Old
  (#22)
Ice Cube
Banned

Videocard: Gigabyte GTX 670
Processor: 2700K@4.5GHz/ Corsair H70
Mainboard: Asus P8Z77-V
Memory: Gskill RipJaws 8GB-1600
Soundcard: Onboard
PSU: Seasonic 850W(80+Gold)
Default 02-15-2013, 14:53 | posts: 191 | Location: Refrigerator

BTW.. really mad skills...

Reply With Quote
Old
  (#23)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-18-2013, 06:21 | posts: 40

Quote:
Originally Posted by iceCube13528 View Post
LOL man you made me nostalgic.. I still remember when i was a kid, one day one of these ran over my leg..
Hahaha.. that s beautiful memories man..
I'm pretty sure my bajaj will not run over your leg..LOL


Night Mod...
Windshield pole

In order to make the drill more stabil, I mark with solder to make a little hole before drill it


Then drill it


Tap it with 3mm


Place some bolt..and done


In the morning before going to office I make a rear bumper.
Dremel it before sunrise comes up


I intend to make 8mm Acrilic...but I don't have it so I combines 2 acrilic 4mm,
then press it with superglue


A little putty and sanding
I always do the sanding on the bucket of water, To keep dust from falling apart all over the place.


Then Paint it, just when the sunrise come up.


Last edited by WAROQ; 02-18-2013 at 06:23.

Reply With Quote
Old
  (#24)
WAROQ
Newbie

WAROQ's Avatar

Videocard: Club Radeon HD 6870
Processor: Core I5 2500K 3.3 Ghz
Mainboard: Gigabyte GA-P67A-UD3-B3
Memory: GSKILL NQ 12800 DDR3 8Gb
Soundcard:
PSU: Seasonic SS-650JT
Default 02-18-2013, 06:53 | posts: 40

Assembling the ankle and Rear wheel.
I've done this on Saturday..I got day off, and a lot of time for another mod.
My plan is making shockbreker tilted a few degrees, just like this..


I made a holder for mount the shockbreaker, I use acrylic with some bolt for the holder.
Some drill for placing the bolt.


Cut a little piece of acrilic, I use manual saw for cutting.






I Also repaint the shock breaker to be black flat and white.




This is the holder




At this point I place the holder


Here we go...

Now it's tilt a couple degree.

Last edited by WAROQ; 02-18-2013 at 06:55.

Reply With Quote
Old
  (#25)
chinobino
Master Guru

chinobino's Avatar

Videocard: GTX580 SLI
Processor: 3770K @ 4.5 GHz
Mainboard: ASRock Z77 Fatal1ty Pro
Memory: 2x4GB Corsair DDR3-2666
Soundcard: Creative Tactic3D Alpha
PSU: ENERMAX REVO 85+ 1250W
Default 02-18-2013, 10:34 | posts: 736

Very impressive work - can't wait to see the finished product!

Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump



Powered by vBulletin®
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
vBulletin Skin developed by: vBStyles.com
Copyright (c) 1995-2014, All Rights Reserved. The Guru of 3D, the Hardware Guru, and 3D Guru are trademarks owned by Hilbert Hagedoorn.
