L3p D3sk - Silent Work & Gaming Station
Old
  (#1)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default L3p D3sk - Silent Work & Gaming Station - 05-24-2011, 14:22 | posts: 286 | Location: Netherlands



Hi there !

I'm quite new in the casemodding world, but since they liked my build at several sites i wanted to post it here too.

First i want to introduce myself here and tell how i got this idea.

Im Peter, 30 years old and im from the Netherlands.
Im pretty new in the casebuild and watercooling world.
Started with my first 486 when i was 14, always been a hardware addict.
But 2 years ago i had heat problems so started reading about watercooling.
I got totally addicted, but then the next problem came with that.
Lifting my 34 Kg case 8 times a day wasn't that good for my back.
And at the same time i needed a new desk.
My other build came to an end and didn't know what to improve.





Really want to thank Pascal for his pc-in-a-desk idea. After seeing it I couldn't even sleep that night : )

Im busy with this build for 8-9 months now, did the most in the 3 week vacation i had.
Did all the rest after my 50 hour/week job.
Taking a rest now, but got a lot of pics to show


I started sketching it with Google Sketchup
After 9 hours of non-stop drawing it finally had some shape.















Hardware to be used:


Intel Core i7 980X @ 4.5 Ghz
Corsair Dominator GT 6GB DDR3-2000 CL7 (Elpida) @ 2000 7-7-7-20-1T
ASUS Rampage III Extreme
2 x ASUS GTX580
ASUS Xense
Sennheiser Xense
Highpoint RocketRAID 3560 24x SATA-300 2 GB
Bigfoot Networks™ Killer™ 2100 Gaming Network Card
1x Intel 510 120GB
3x Corsair F60 raid0
6x Hitachi Deskstar 7K2000 2TB raid5
2x Optiarc AD-7241S-0B
2 x Coolermaster Silent Pro 700W
Dell U2711 27***8243; IPS
2x Dell 1703 FPt 17***8243; portrait

Blocks
1 x EK Supreme HF Nickel CPU Block
2 x EK-FC580 GTX – Nickel
2 x EK-FC580 GTX Backplate – Nickel plated
1 x EK RAM Dominator Nickel
1 x EK-FB RE3 – Nickel
1 x EK-FB RE3 – TOP Acetal – Level 2
2 x Bitspower HDD Acetal Liquid Cooling Block – Silver

Pumps
2 x Laing D5-MCP655
2 x Bitspower D5/MCP655 Mod Pump Top V2
2 x Bitspower Black Sparkle D5/MCP655 Mod Kit

Reservoir
1 x Aquacomputer Aquatube G1/4 brass

Radiator
1 x Aquacomputer evo 1080

Fans

6 x Nanoxia DX Series 120MM DX12 - 1200RPM @ 5V
11 x Scythe Gentle Typhoon 120MM 1450RPM @ 12V

Fittings etc

24 x Bitspower Black Sparkle Multi-Link (SLI/CF) Adapter
16 x Bitspower Black Sparkle G1/4 Rotary 90 Degree IG1/4 Adapter
12 x Bitspower Black Sparkle G1/4 naar G1/4 (2x OD) Verbindingsstuk
10 x Bitspower Black Sparkle G1/4 Stop Fitting
8 x Bitspower Black Sparkle 13MM (1/2) Schroeffitting – G1/4
6 x Bitspower Black Sparkle G1/4 Rotary 90 Degree ID 1/4 Adapter
6 x Bitspower Black Sparkle G1/4 IG1/4 Extender
4 x Bitspower Black Sparkle G1/4 Five Rotary Snake-Style Dual IG1/4 Adapter
4 x Bitspower Black Sparkle G1/4 Rotary 45 Degree IG1/4 Adapter
2 x Bitspower Black Sparkle G1/4 Triple Rotary Mini Snake-Style Dual IG1/4 Adapter
1 x Bitspower Black Sparkle G1/4 Triple Rotary Snake-Style Dual IG1/4 Adapter
1 x Bitspower Black Sparkle G1/4 Rotary IG1/4 Extender
5 x Bitspower Crystal Link Tube For 5-Slots (SLI/CF)
8 x Bitspower Silver Shining 2xG1/4***8243; Fillport
2 x Bitspower Silver Shining G1/4 naar G1/4 (2x OD) Verbindingsstuk Mini
2 x Bitspower Matt Black 2xG1/4***8243; Fillport
2 x Bitspower Matt Black 13MM (1/2)Schroeffitting – G1/4
1 x Koolance INS-FM17 Coolant Flow Meter & Adapter Board INS-FM17
2 x Thermosensor G1/4 2x ID In-Line met Display (blue)
2 x Colder 13MM (1/2) Snelkoppeling Set
2 m Tygon R3400 1/2 ID Black
2 m Tygon R3603 1/2 ID Clear
3 L Feser One Cooling Fluid – UV Acid Green




Sponsored by:





Last edited by L3p; 03-25-2012 at 20:35.

Reply With Quote

Old
  (#2)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:23 | posts: 286 | Location: Netherlands

I'm also gonna use my old cooling again since it works superb.
It's a 1080 radiator under my floor from my house, right in the corner where my pc is.
My water temperature in wintertime is around 17 degrees, in the summer it's around 23 degrees.

http://www.youtube.com/watch?v=WpBDQ9XXFGo










Here some Youtube movies:

Underground radiator


The Final Fill-up


Silence of the L3p D3sk




Last edited by L3p; 08-16-2011 at 13:25.

Reply With Quote
Old
  (#3)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:24 | posts: 286 | Location: Netherlands

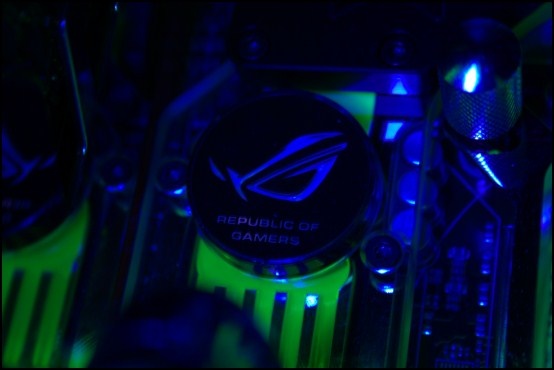

Here are the final pictures i made for some Casemod contest.
Still got some small mods (One really cool one) to do in the future so it isnt completely finished yet.

After these pictures i'll fill up this thread with the complete buildlog

All these pictures are clickable to the original 3600x2900 resolution pictures

Have fun !













































Last edited by L3p; 05-24-2011 at 14:55.

Reply With Quote
Old
  (#4)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:25 | posts: 286 | Location: Netherlands













































Last edited by L3p; 05-24-2011 at 14:57.

Reply With Quote

Old
  (#5)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:26 | posts: 286 | Location: Netherlands













































Last edited by L3p; 05-24-2011 at 14:58.

Reply With Quote
Old
  (#6)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:27 | posts: 286 | Location: Netherlands

Since im already busy with this project for 8 months now, here are all the pics in one post.

Started with an Aluminium plate of 1850x990x3





Plates for the mainboard tray, hdd tray, pump/res tray and cable plate







The bearer ring to hold my desk




Been to an other company to make a logo




And back to welding








Plasmacutter to make some cable holes



Last edited by L3p; 05-27-2011 at 21:59.

Reply With Quote
Old
  (#7)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-24-2011, 14:31 | posts: 286 | Location: Netherlands

End of the first long day


Creating a logo (was just a try, worked out well)





Made some holes for the lcd's for the in and outgoing water temperature, and for the logo



Had to make some changes to let my knees fit



Fitting the trays with sound isolation under it.





I love packages !



Thought the buttons would the same, gonna change for 2 big one's now.



Sound isolating for under my trays.



My best friend welding



Holes for the Bitspower fanguards
Both sides will have 3x 120mm Scythe Gentle Typhoons 1450 rpm op 5V
Underground will be 9x 120mm Scythe Gentle Typhoons 1450 rpm op 12V @ the 1080 radiator





Thats me !




Last edited by L3p; 05-27-2011 at 21:58.

Reply With Quote
Old
  (#8)
avivoni
Maha Guru

avivoni's Avatar

Videocard: 560ti 448 classified
Processor: i7 920 h50 @3.6
Mainboard: evga x58 3x sli
Memory: 12gb ddr3 1600mhz 8-7-7
Soundcard: X-fi
PSU: corsair 1000w
Default 05-24-2011, 15:27 | posts: 2,592 | Location: PR

WOW the most clean beutifull desk computer on the net.

Reply With Quote
Old
  (#9)
Steppis
Maha Guru

Videocard: 2xXFX 5870 "XT" Crossfire
Processor: i7 920@Stock H2o
Mainboard: ASUS P6T SE
Memory: Patriot 6GB 1600mhz LL
Soundcard: Asus Xonar
PSU: Corsair HX1000
Default 05-24-2011, 15:58 | posts: 842 | Location: Norway

Damn! nice build! Need build log! That desk looked awsome. Maybe build one myself.

Reply With Quote
Old
  (#10)
Anubis
Ancient Guru

Anubis's Avatar

Videocard: Gigabyte GTX 460 1GB
Processor: Q6600@3.4Ghz - CM V8
Mainboard: Asus P5Q pro -modded bios
Memory: 8gb Corsair
Soundcard: -
PSU: LC-Power Metatron 8750II
Default 05-24-2011, 17:01 | posts: 2,782 | Location: ∞

Haven't you posted this once before? I can swear I allready commented on this thread one year ago or so.
Anyways, again awesome build, just the rad under the house is a bit too much imho..

Reply With Quote

Old
  (#11)
Zer0K3wL
Banned

Videocard: gtx 480 850/1700/2000 h2o
Processor: i7 920 c0 @ 3,8 ghz h2o
Mainboard: P6X58D Premium
Memory: 3x 2gb ddr3 1603 9-9-9-24
Soundcard: tx-nr609+S606 HCS3+sub
PSU: Antec TPQ-850
Default 05-24-2011, 17:12 | posts: 3,088

Best looking watercooling if ever seen tbh.
So how much time and money this costed you ?

Reply With Quote
Old
  (#12)
Darkiee
Master Guru

Darkiee's Avatar

Videocard: Sli 480
Processor: i7 2600k
Mainboard: P8Z68-VPro
Memory: G.Skill 1600 CL9 Ripjaws
Soundcard: Essence STX
PSU: Corsair HX850
Default 05-24-2011, 17:21 | posts: 288 | Location: Finland

I´v been following your build on XS, really impressive work. Keep up the good work, and perhaps, maybe on another new build.

Reply With Quote
Old
  (#13)
nhlkoho
Ancient Guru

nhlkoho's Avatar

Videocard: EVGA GTX770 4GB FTW
Processor: i7 4770k
Mainboard: Asus Z87 Plus
Memory: Veng. Pro 16GB DDR3-1866
Soundcard: SB X-FI Fatality
PSU: EVGA 750G2
Default 05-24-2011, 18:13 | posts: 4,722 | Location: Washington DC

How often do you have to clean the fans on the radiator? There's an awful lot of sand down there.

Reply With Quote
Old
  (#14)
apintojr
Maha Guru

Videocard: Gigabyte GTX 670 2gb
Processor: Intel i7 930@3.8Ghz H100i
Mainboard: Gigabyte X58A UD3R
Memory: 12GB OCZ 1448MHZ
Soundcard: onboard
PSU: TT Toughpower 850
Default 05-24-2011, 22:07 | posts: 1,165 | Location: NJ-USA

this needs to be on pornhub

Reply With Quote
Old
  (#15)
StoneyOC
Master Guru

StoneyOC's Avatar

Videocard: EVGA GTX 780 SC
Processor: i7 4770k @ 4.6GHz
Mainboard: Asus Maximus VI Formula
Memory: 16GB Corsair Vengeance
Soundcard: X-Fi Titanium HD
PSU: Corsair AX1200i
Default 05-25-2011, 00:11 | posts: 191 | Location: London, UK

Simply stunning

Reply With Quote
Old
  (#16)
vbetts
Don Vincenzo

vbetts's Avatar

Videocard: Geforce 760
Processor: Intel Xeon W3680
Mainboard: Mac Pro 5.1
Memory: 6gb ddr3 1333
Soundcard: onboard
PSU: Mac PRO PSU
Default 05-25-2011, 02:37 | posts: 10,438 | Location: Toledo Ohio

This is easily one of the best home made cases I've seen in my life. Do you have to clean the radiator fans out more since they're in a crawl?

Last edited by vbetts; 05-25-2011 at 02:44.

Reply With Quote
Old
  (#17)
CasperTm
Master Guru

CasperTm's Avatar

Videocard: MSI R9 270X OC 2GB Gaming
Processor: AMD A10 7700K
Mainboard: MSI X88XM Gaming
Memory: 2x4GB Corsair XMS3 1333MH
Soundcard: Razer Megalodon
PSU: Corsair CX750
Default 05-25-2011, 15:15 | posts: 279 | Location: Hungary

Rig of the year.... Never seen better lol...

Reply With Quote
Old
  (#18)
CronoGraal
Ancient Guru

CronoGraal's Avatar

Videocard: XFX Radeon HD6870 1GB
Processor: Intel Q9450 @ 3.4ghz
Mainboard: Gigabyte X48-DQ6
Memory: 2x2GB Corsair Dominator
Soundcard: Soundblaster Audigy SE
PSU: Corsair 750W TX
Default 05-25-2011, 17:06 | posts: 3,792 | Location: Sweden

bro that is ****ing awesome.

Reply With Quote
Old
  (#19)
LordJummy
Master Guru

Videocard: Crossfire "6970" 980/1400
Processor: i7 970 HT Custom H20
Mainboard: ASUS Rampage 3 Formula
Memory: 12GB Dominator @ 1600+
Soundcard: Crtv X-Fi Ti Fatal1ty Pro
PSU: SeaSonic
Default 05-25-2011, 20:24 | posts: 285

So sweet. It's beautiful.

Side note: I could have sworn I already commented on this, but I don't see my comment.

Anyways, keep up the good work sir!

Reply With Quote
Old
  (#20)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-25-2011, 22:27 | posts: 286 | Location: Netherlands

Thanks for the reactions guys !

No i don't have to clean the fans or the rads, it's very very dry over there.
The sand won't lift up either.

Maybe this will make it more clear.

http://www.youtube.com/watch?v=WpBDQ9XXFGo

I will post all the other pictures tomorrow, had to fix my host first.

Reply With Quote
Old
  (#21)
scoter man1
Ancient Guru

scoter man1's Avatar

Videocard: Evga GTX 570/Korean 1440p
Processor: Intel Core i7 4790K
Mainboard: Asus Sabertooth Z97 Mark1
Memory: GSkill Trident X 2x4GB
Soundcard: Onboard/Superlux HD660
PSU: XIGMATEK 750w
Default 05-26-2011, 22:27 | posts: 4,259 | Location: MI, USA

Wow, that desk is SEXY! Very nice work there! That outside radiator is cool too. Nice rig man .

Reply With Quote
Old
  (#22)
BLEH!
Ancient Guru

BLEH!'s Avatar

Videocard: 7970 CF @ Stock
Processor: 980X @ 4 GHz
Mainboard: ASUS P6T7 WS-SC
Memory: 12 GB Corsair @ 1866 MHz
Soundcard: Saffire Pro40/KRK Rokit 5
PSU: Enermax Revo 1500W
Default 05-26-2011, 22:32 | posts: 4,813 | Location: London

Dude, thats awesome, best thing I've ever seen.

Reply With Quote
Old
  (#23)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-27-2011, 22:02 | posts: 286 | Location: Netherlands

Thanks a lot guys !





"Rough" work is done







A Bitspower Black Sparkle Ashtray





So brought the d3sk back home
















Reply With Quote
Old
  (#24)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-27-2011, 22:03 | posts: 286 | Location: Netherlands

Gonna use the backplate of an old lianli. (Thanks brother in law !)





Fitting, measuring and hanging





The battlefield.













Just playing around







New toy arrived



Fitting and measuring, pff


Reply With Quote
Old
  (#25)
L3p
Master Guru

L3p's Avatar

Videocard: Asus GTX690
Processor: Intel i7 2600K @ 4.8Ghz
Mainboard: Asus Maximus V Formula
Memory: Corsair Dom GT 16GB
Soundcard: Bose Computer Monitor
PSU: Cooler Master V1000
Default 05-27-2011, 22:06 | posts: 286 | Location: Netherlands

Forgot a hole



So made it bigger



Mess outside



Made 2 extra 120mm fan holes in the cable-space, cause i decided my psu will come there too.
And made the hole for the lianli backplate.





Bitspower !





And building everything back for the hole picture



Shopping time



Measuring the last holes.



And more measuring



Muscle pain !



Rear = ready



And the front !




Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump



Powered by vBulletin®
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
vBulletin Skin developed by: vBStyles.com
Copyright (c) 1995-2014, All Rights Reserved. The Guru of 3D, the Hardware Guru, and 3D Guru are trademarks owned by Hilbert Hagedoorn.
